CGTS714E19S
Category:26482 Series
Keywords:Housing No. 14, 19 contacts, socket type, Polyamide Nylon UL94 V0, IP68/IP69K, Rated 250V, -40℃~105℃, Gold-plated contacts, Pin-lock quick-release
Details
The CGTS series is a domestic alternative to the UTS Hi Seal waterproof plastic circular connector. It features a polyamide nylon housing with UL94 V0 flame retardancy and UV resistance, delivering IP68/IP69K sealing protection even when unmated. Operating temperature range: -40°C to 105°C; rated voltage: 250V. Gold-plated contacts ensure stable, reliable performance. Available in various configurations including square flange mount, round nut panel mount, short plug, and cable lock tail. Offers diverse pin counts and utilizes a bayonet-style locking mechanism for quick connection. Designed for outdoor and harsh wet environments in energy, instrumentation, lighting, and communications sectors—ideal for replacing imported models with convenient off-the-shelf selection.

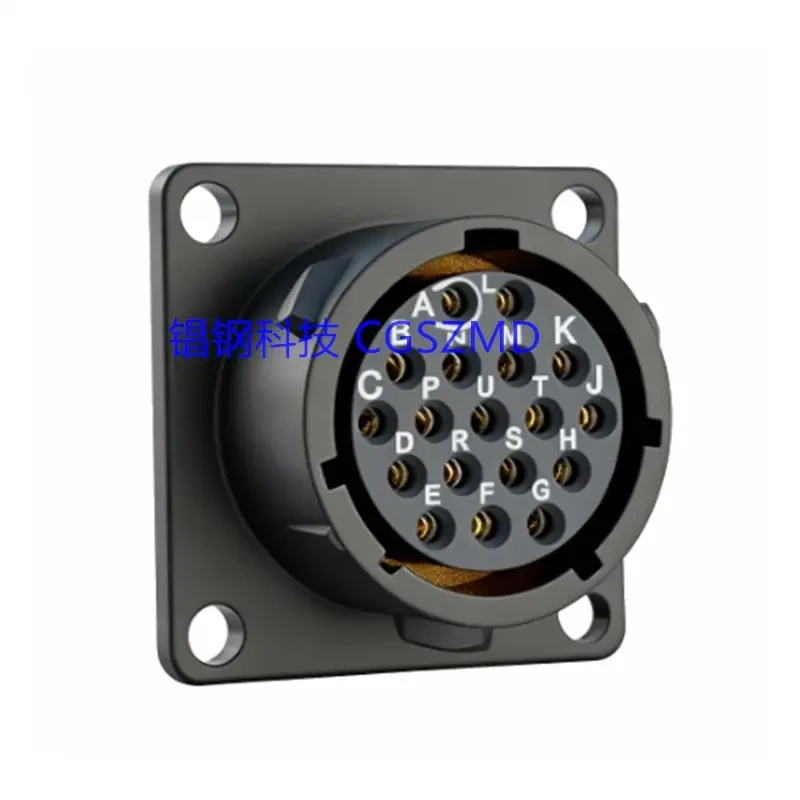

Model CGTS714E19S: Housing size 14, 19 pins, socket-type contacts.
Parameters:

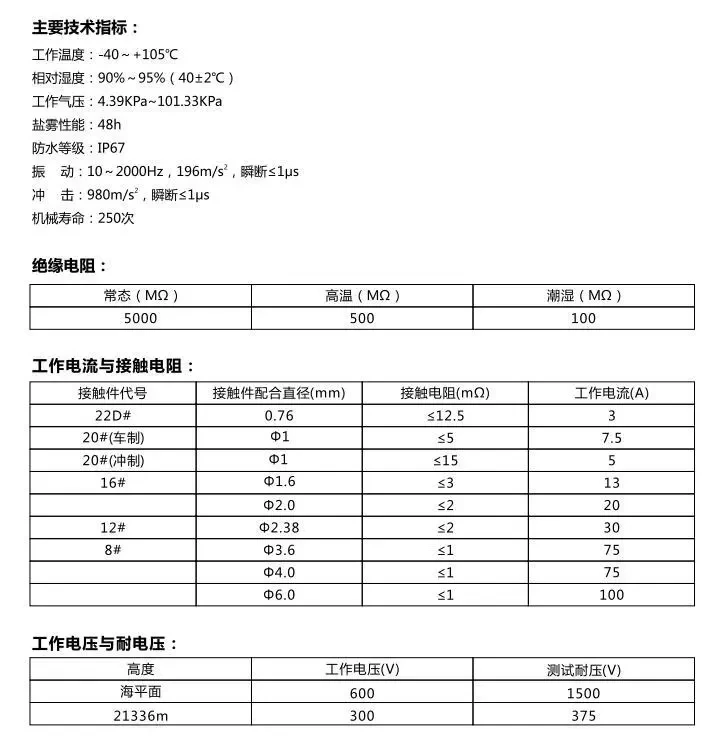

Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Line | CGTS (Benchmarked against UTS Hi Seal) | Number of contacts | 19 |
| Housing Number | 14 | Number of contacts | 19 |
| Number of contacts | 19 | Housing Material | Polyamide Nylon |
| Contact configuration | Socket | Housing Material | Polyamide Nylon |
| Housing Material | Polyamide Nylon | UV Protection | Has |
| Flame Retardant Rating | UL94 V0 | UV Protection | Has |
| UV Protection | Has | Operating Temperature | -40℃~105℃ |
| Protection Rating | IP68/IP69K (Unpaired State) | Operating Temperature | -40℃~105℃ |
| Operating Temperature | -40℃~105℃ | Gold-plated contacts | Yes |
| Rated Voltage | 250V | Gold-plated contacts | Yes |

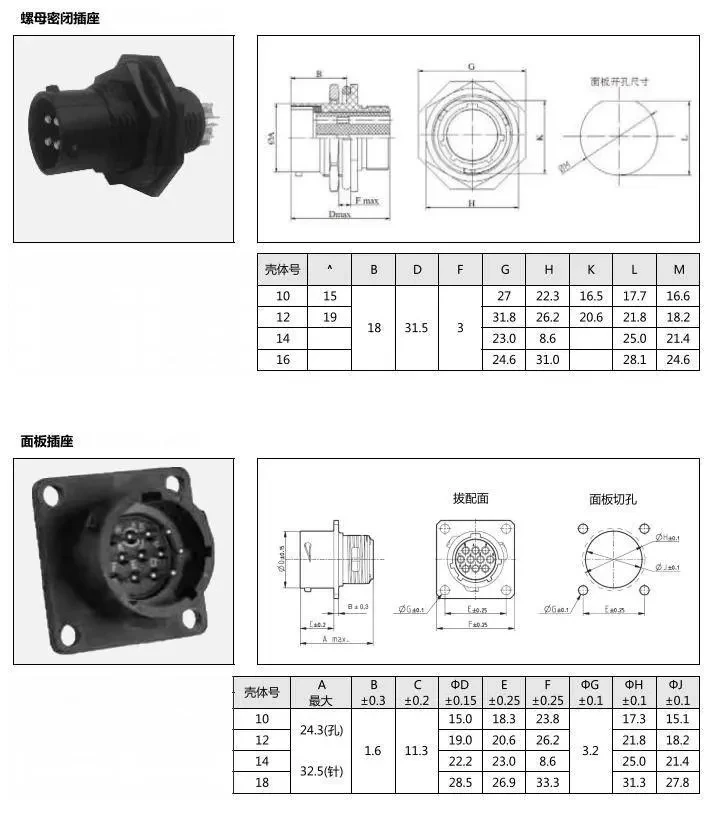

| Gold-plated contacts | Yes | Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
| Locking method | Quick-lock pin lock | Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
| Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
