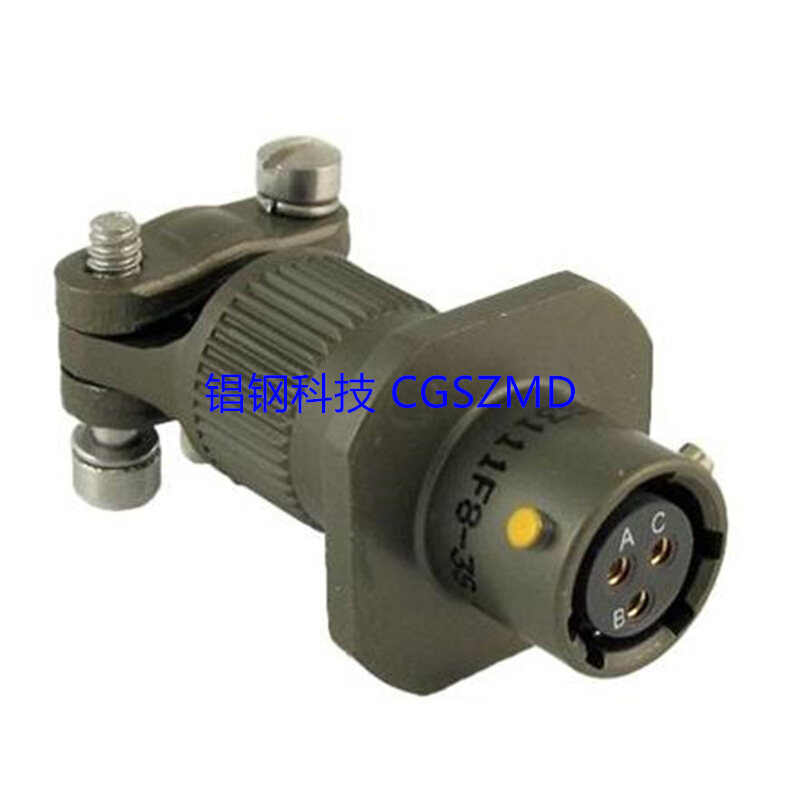

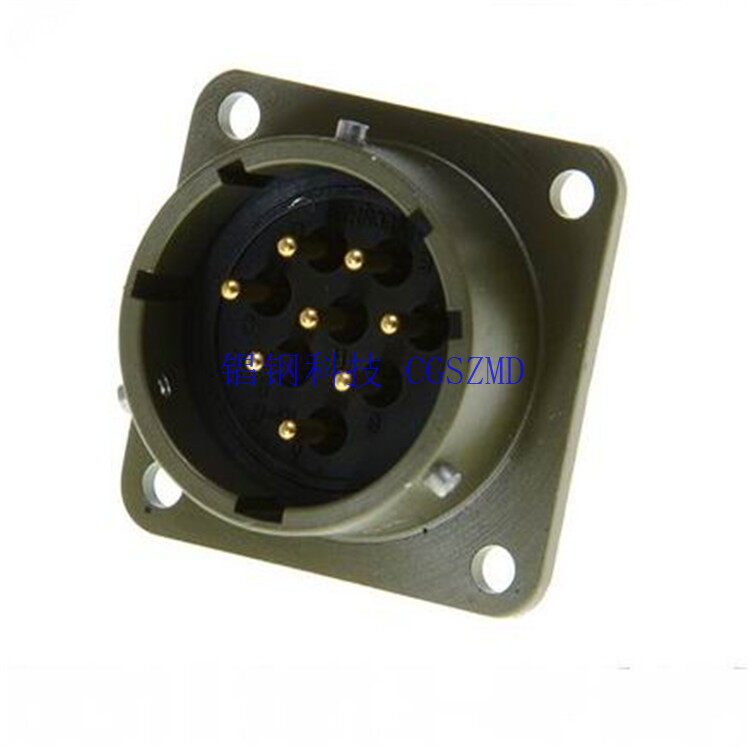

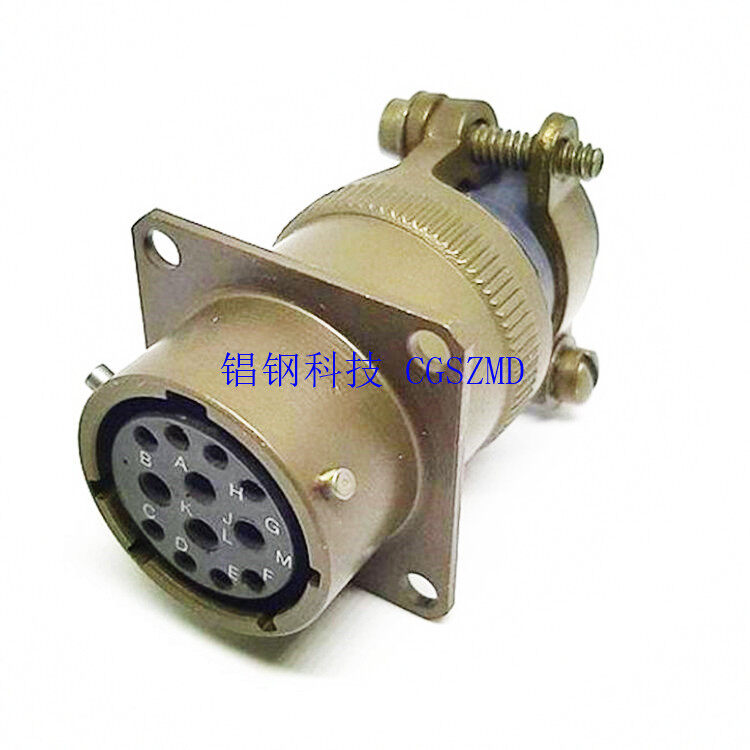

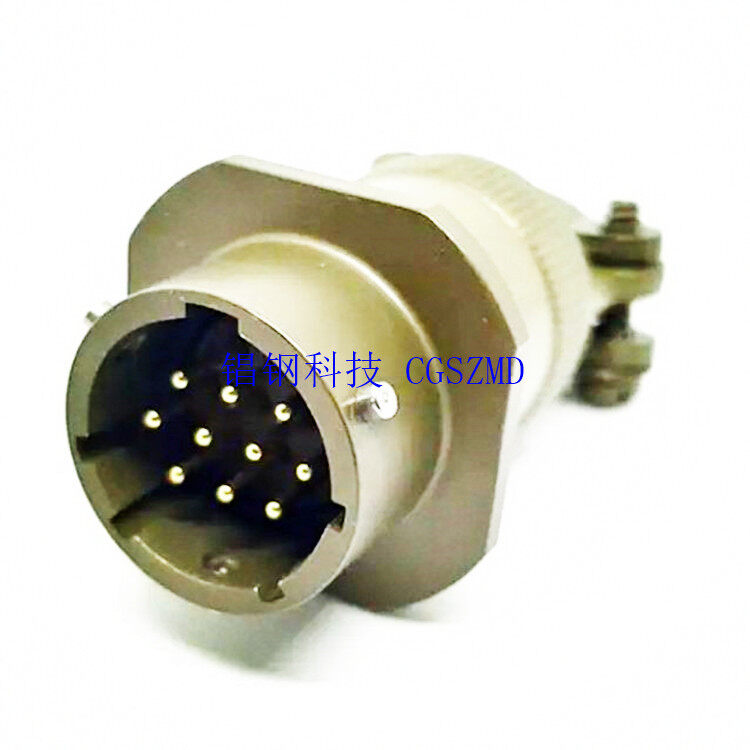

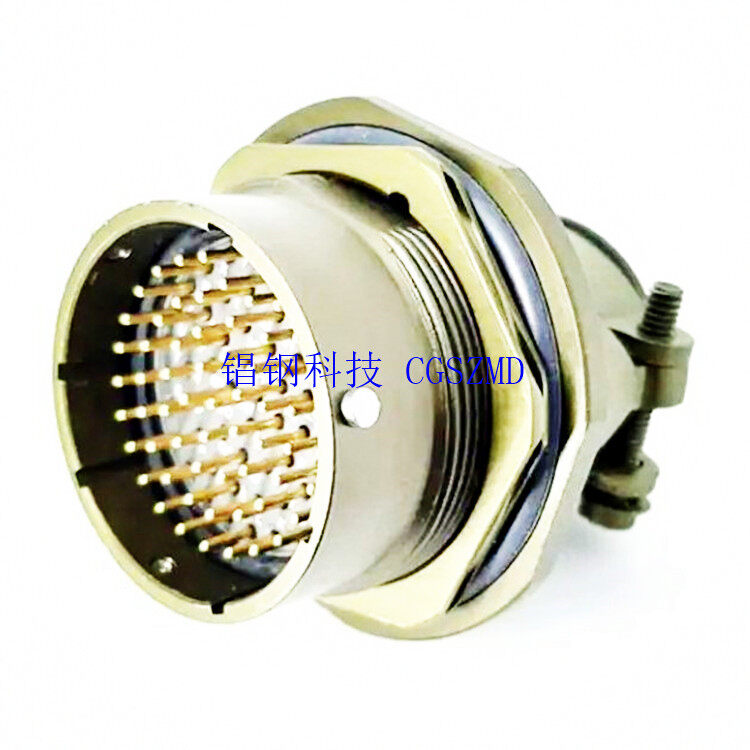

MIL-DTL-26482 (formerly MIL-C-26482) Compact Military Circular Connector, available in Series I and Series II. This lightweight bayonet-style connector is fully interchangeable with domestic and international counterparts of the same specifications, widely used for signal and power interconnection in airborne and vehicular medium-to-small equipment. **Series I:** Features a basic bayonet locking mechanism. **Series II:** An upgraded version equipped with standard Scoop-proof protection to enable blind mating and prevent pin damage during insertion. **Shell Sizes:** Available in nine sizes: 08#, 10#, 12#, 14#, 16#, 18#, 20#, 22#, 24#. **Mounting Types:** Includes wall-mount flange receptacles, nut-locking receptacles, straight plugs, and 90° angled plugs. **Materials & Finish:** Shells are可选 (optional) in high-strength aluminum alloy, stainless steel, or composite materials. Surface treatments include military green cadmium plating, chemical nickel plating, black zinc-nickel passivation, and stainless steel passivation, offering resistance to salt spray, vibration, and shock. Multi-layer sealing in the fully mated state ensures dustproof, moisture-proof, and oil-resistant performance. **Safety & Compatibility:** Built-in multi-key anti-mate structures prevent incorrect connections between shells. A wide variety of contact arrangements support power, analog signals, differential signals, and coaxial contacts mixed within the same shell. **Applications:** Airborne equipment, UAVs, military vehicle electronics, radar subsystems, rail transit control units, high-end industrial equipment, measurement instruments, and marine systems. Fully compatible and interchangeable with mainstream Western brands. ⚠️ **Important Distinction:** MS3100/MS3106/MS3108 belong to the MIL-DTL-5015 threaded series and are not part of 26482. The following list displays only native models under the MIL-DTL-26482 standard. ### Mainstream Shell Models (MIL-DTL-26482 Standard System) #### Series I (Basic Bayonet, No Scoop-proof Structure) * MS3110 (Square Flange Wall-Mount Receptacle) * MS3111 (Nut-Locking Receptacle) * MS3112 (Straight Plug) * MS3116 (90° Angled Plug) **Contact Configurations:** MS3110E08-33PN, MS3110E10-6PN, MS3110E12-10PN, MS3110E14-12PN, MS3110E16-26PN, MS3110E18-32PN, MS3110E20-41PN, MS3110E22-55PN, MS3110E24-61PN MS3111E08-33SN, MS3111E10-6SN, MS3111E12-10SN, MS3111E14-12SN, MS3111E16-26SN, MS3111E18-32SN, MS3111E20-41SN, MS3111E22-55SN, MS3111E24-61SN MS3112E08-33PN, MS3112E10-6PN, MS3112E12-10PN, MS3112E14-12PN, MS3112E16-26PN, MS3112E18-32PN, MS3112E20-41PN, MS3112E22-55PN, MS3112E24-61PN MS3116E08-33PN, MS3116E10-6PN, MS3116E12-10PN, MS3116E14-12PN, MS3116E16-26PN, MS3116E18-32PN, MS3116E20-41PN, MS3116E22-55PN, MS3116E24-61PN #### Series II (Scoop-proof Bayonet, Mainstream Upgraded Model) * MS3470 (Square Flange Wall-Mount Receptacle) * MS3471 (Nut-Locking Receptacle) * MS3472 (Straight Plug) * MS3476 (90° Angled Plug) **Contact Configurations:** MS3470L08-33PN, MS3470L10-6PN, MS3470L12-10PN, MS3470L14-12PN, MS3470L16-26PN, MS3470L18-32PN, MS3470L20-41PN, MS3470L22-55PN, MS3470L24-61PN MS3471L08-33SN, MS3471L10-6SN, MS3471L12-10SN, MS3471L14-12SN, MS3471L16-26SN, MS3471L18-32SN, MS3471L20-41SN, MS3471L22-55SN, MS3471L24-61SN MS3472L08-33PN, MS3472L10-6PN, MS3472L12-10PN, MS3472L14-12PN, MS3472L16-26PN, MS3472L18-32PN, MS3472L20-41PN, MS3472L22-55PN, MS3472L24-61PN MS3476L08-33PN, MS3476L10-6PN, MS3476L12-10PN, MS3476L14-12PN, MS3476L16-26PN, MS3476L18-32PN, MS3476L20-41PN, MS3476L22-55PN, MS3476L24-61PN **Code Explanation:** P = Pin (Male Contact), S = Socket (Female Contact). The tail can be fitted with various EMI shielding backshells, cable clamp accessories, and corrugated hose covers.
