P55

P55

Category:power outlet

Keywords:2РТТ、ШР为苏联/俄罗斯国标经典通用圆形连接器,是俄系军工、车载电控、船舶工控、仪器仪表的核心配套互联器件,国产化替换通用性极强,适配俄标设备维修、改造、整机配套场景。产品由插头、插座两部分组成,分为设备仪器安装型与电缆对接型,支持直管、弯头双结构装配,适配面板固定、线缆转接、拐角布线等各类、通用型插座、多规格可选

Customer Message

Details

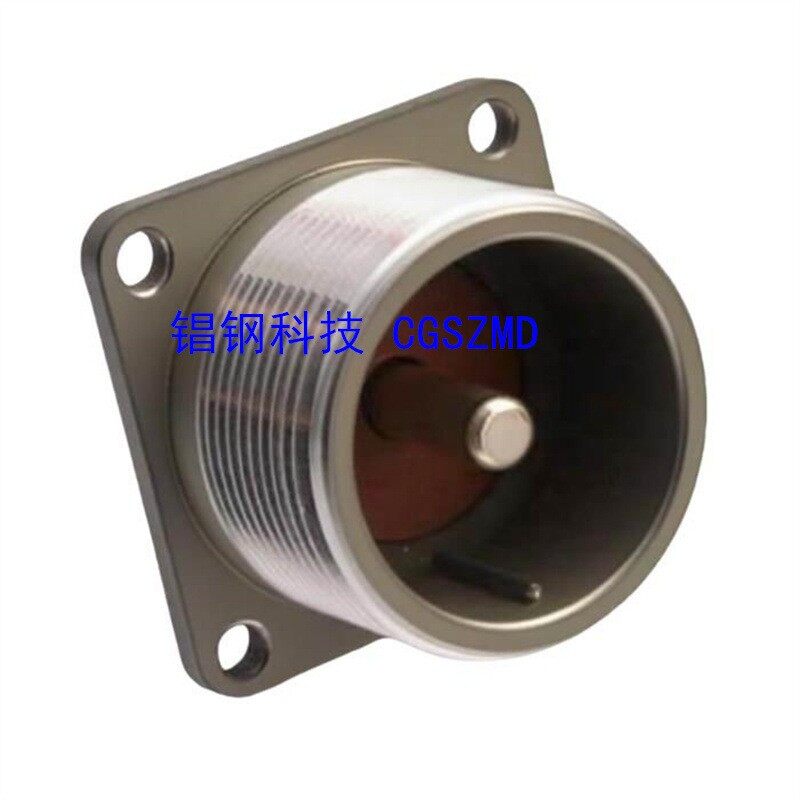

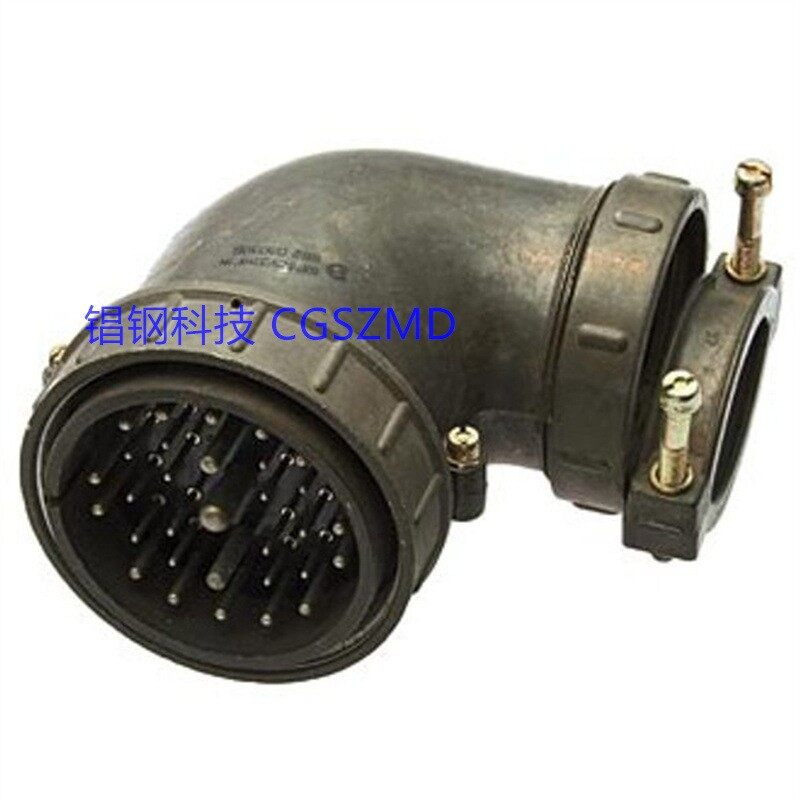

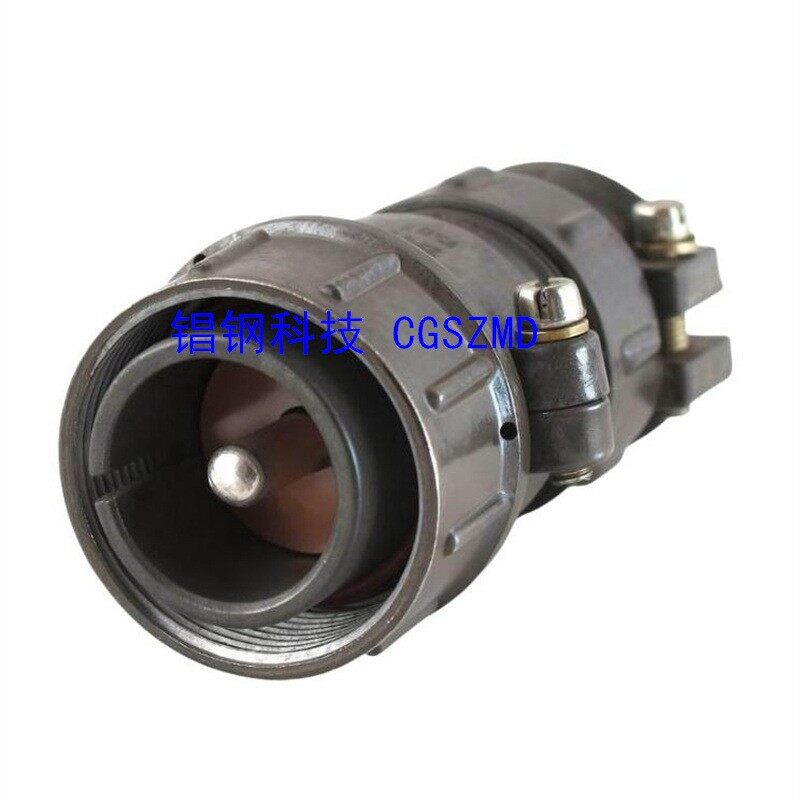

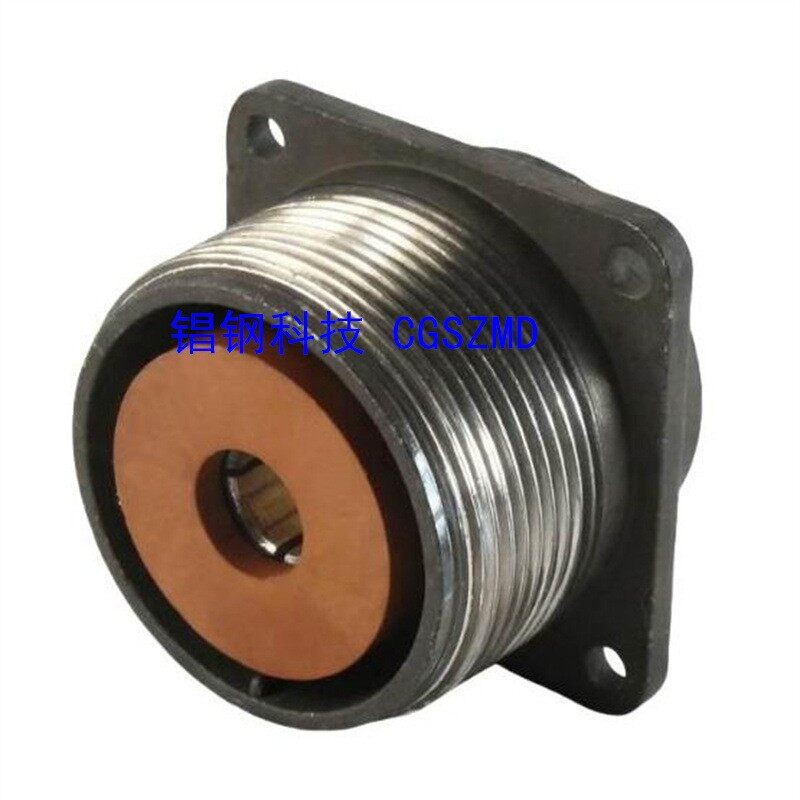

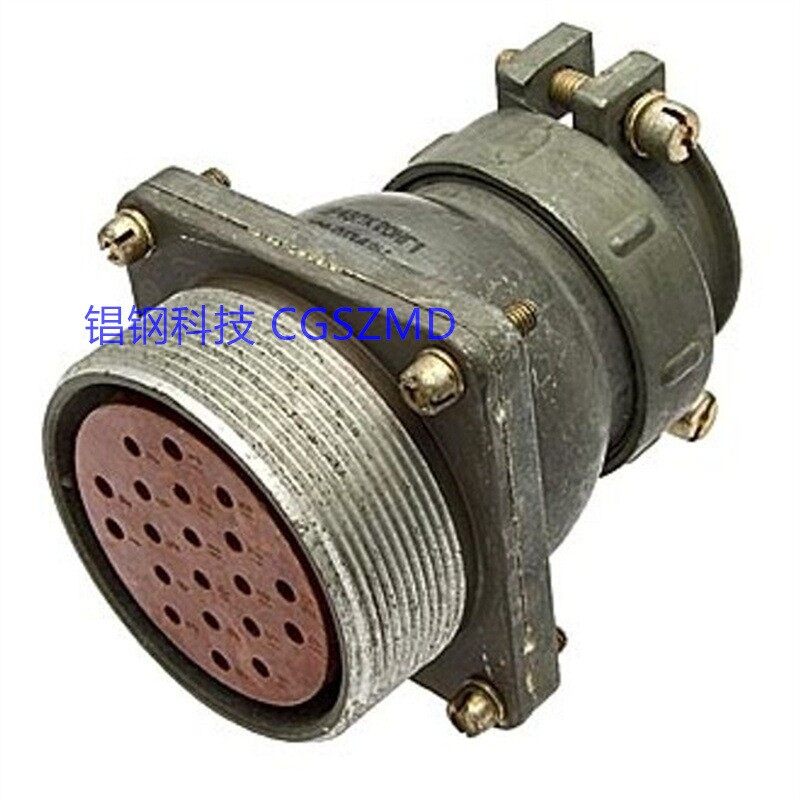

2RTT and SR connectors are classic Soviet/Russian GOST standard circular connectors. As core interconnection components for Russian military, vehicle electronics, marine industrial control, and instrumentation systems, they offer exceptional compatibility for domestic substitution, supporting the repair, retrofitting, and full-system integration of Russian-standard equipment. Each product consists of a plug and a receptacle, available in panel-mount and cable-termination versions, with both straight and angled configurations to suit panel mounting, cable adapters, and corner routing applications. All models come standard with rubber protective boots, paired with washers and gaskets for superior dust protection that effectively prevents debris ingress and ensures stable long-term operation. The threaded locking mechanism combined with a single-polarity keyed housing guarantees secure mating, vibration resistance, anti-loosening performance, and prevention of incorrect insertion, while facilitating easy assembly and maintenance. Core contacts feature silver plating for excellent conductivity, stable contact resistance, high wear resistance, and superior electrical reliability. The series is available in shielded and unshielded variants with various rear nut options, including through-type and conduit-entry styles, offering extensive selection flexibility. [Shell 16] (16 models): SR16P2ES5, SR16P2EG5, SR16Z2ES5, SR16Z2EG5, SR16P3ES6, SR16P3EG6, SR16Z3ES6, SR16Z3EG6, SR16P2S5, SR16P2G5, SR16Z2S5, SR16Z2G5, 2RTT16P2ES5, 2RTT16P2EG5, 2RTT16P3ES6, 2RTT16P3EG6 [Shell 20] (16 models): SR20P2ES7, SR20P2EG7, SR20Z2ES7, SR20Z2EG7, SR20P3ES8, SR20P3EG8, SR20Z3ES8, SR20Z3EG8, SR20P2S7, SR20P2G7, SR20Z2S7, SR20Z2G7, 2RTT20P2ES7, 2RTT20P2EG7, 2RTT20P3ES8, 2RTT20P3EG8 [Shell 28] (14 models): SR28P4ES12, SR28P4EG12, SR28Z4ES12, SR28Z4EG12, SR28P5ES14, SR28P5EG14, SR28Z5ES14, SR28Z5EG14, SR28P4S12, SR28P4G12, SR28Z4S12, SR28Z4G12, 2RTT28P4ES12, 2RTT28P4EG12 [Shell 32] (14 models): SR32P5ES16, SR32P5EG16, SR32Z5ES16, SR32Z5EG16, SR32P6ES18, SR32P6EG18, SR32Z6ES18, SR32Z6EG18, SR32P5S16, SR32P5G16, SR32Z5S16, SR32Z5G16, 2RTT32P5ES16, 2RTT32P5EG16 [Shell 36] (14 models): SR36P6ES20, SR36P6EG20, SR36Z6ES20, SR36Z6EG20, SR36P7ES22, SR36P7EG22, SR36Z7ES22, SR36Z7EG22, SR36P6S20, SR36P6G20, SR36Z6S20, SR36Z6G20, 2RTT36P6ES20, 2RTT36P6EG20 [Shell 40] (14 models): SR40P7ES24, SR40P7EG24, SR40Z7ES24, SR40Z7EG24, SR40P8ES26, SR40P8EG26, SR40Z8ES26, SR40Z8EG26, SR40P7S24, SR40P7G24, SR40Z7S24, SR40Z7G24, 2RTT40P7ES24, 2RTT40P7EG24 [Shell 48] (12 models): SR48P8ES28, SR48P8EG28, SR48Z8ES28, SR48Z8EG28, SR48P9ES30, SR48P9EG30, SR48Z9ES30, SR48Z9EG30, SR48P8S28, SR48P8G28, 2RTT48P8ES28, 2RTT48P8EG28 [Shell 55] (10 models): SR55P9ES32, SR55P9EG32, SR55Z9ES32, SR55Z9EG32, SR55P10ES35, SR55P10EG35, SR55P9S32, SR55P9G32, 2RTT55P9ES32, 2RTT55P9EG32 [Shell 60] (10 models): SR60P10ES38, SR60P10EG38, SR60Z10ES38, SR60Z10EG38, SR60P11ES40, SR60P11EG40, SR60P10S38, SR60P10G38, 2RTT60P10ES38, 2RTT60P10EG38

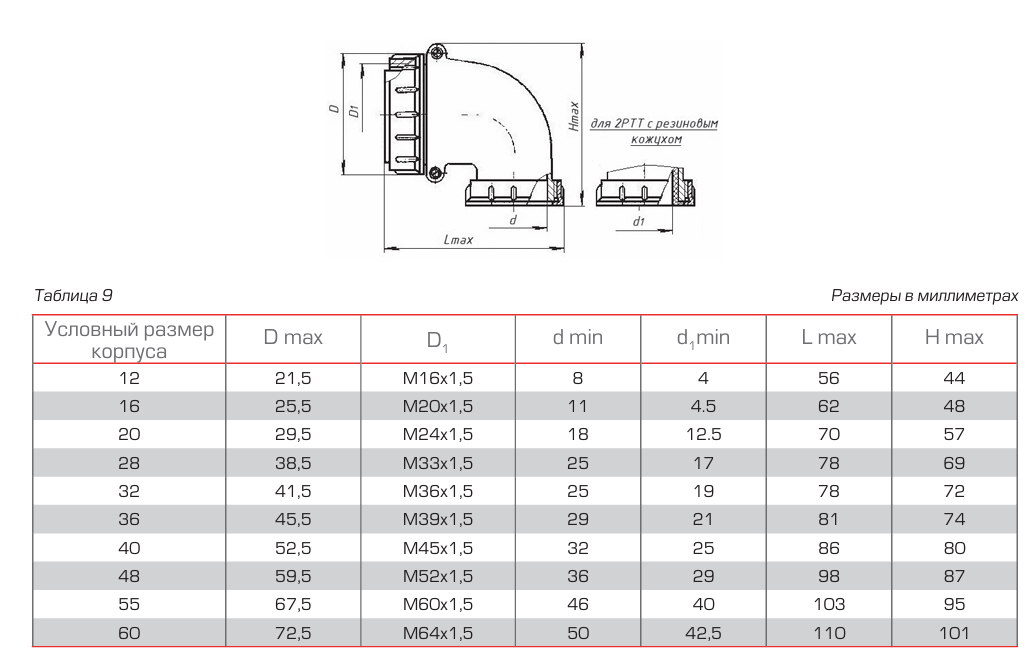

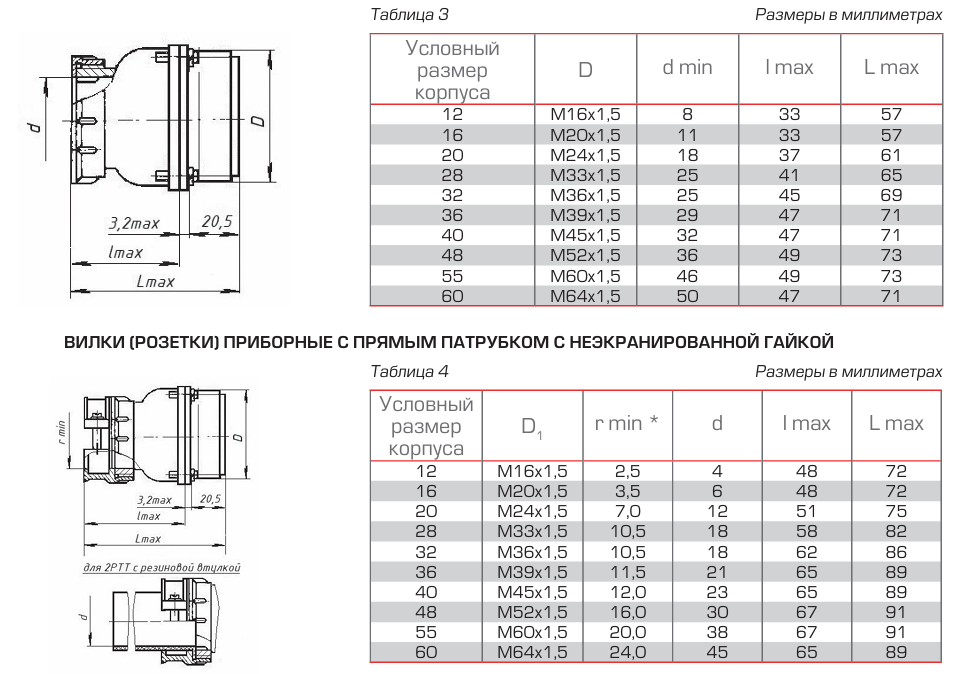

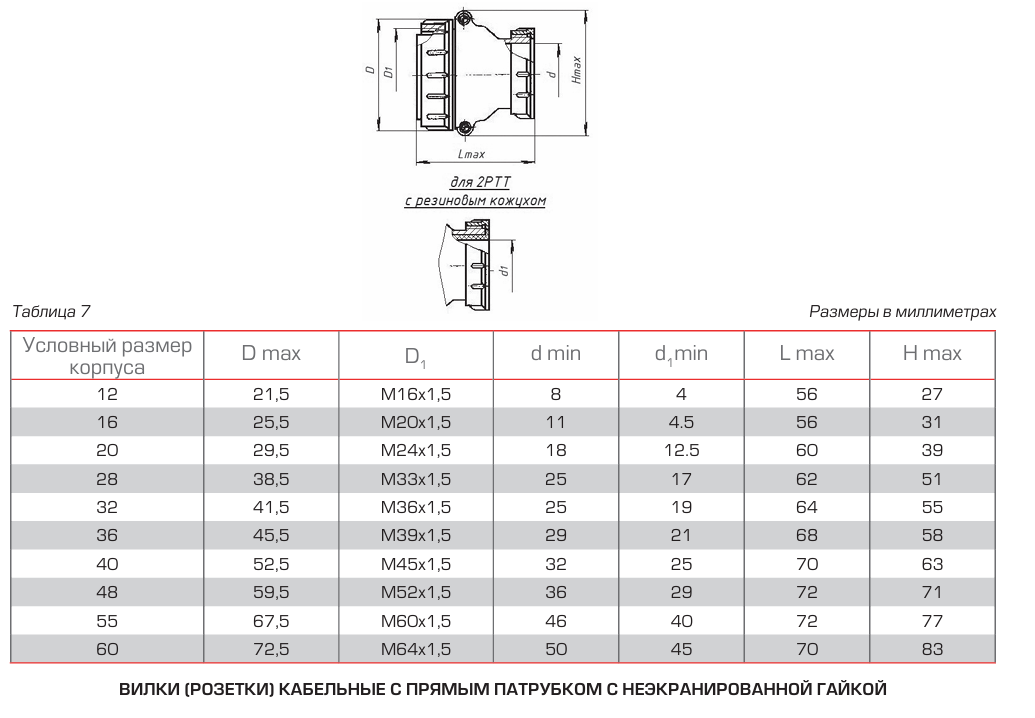

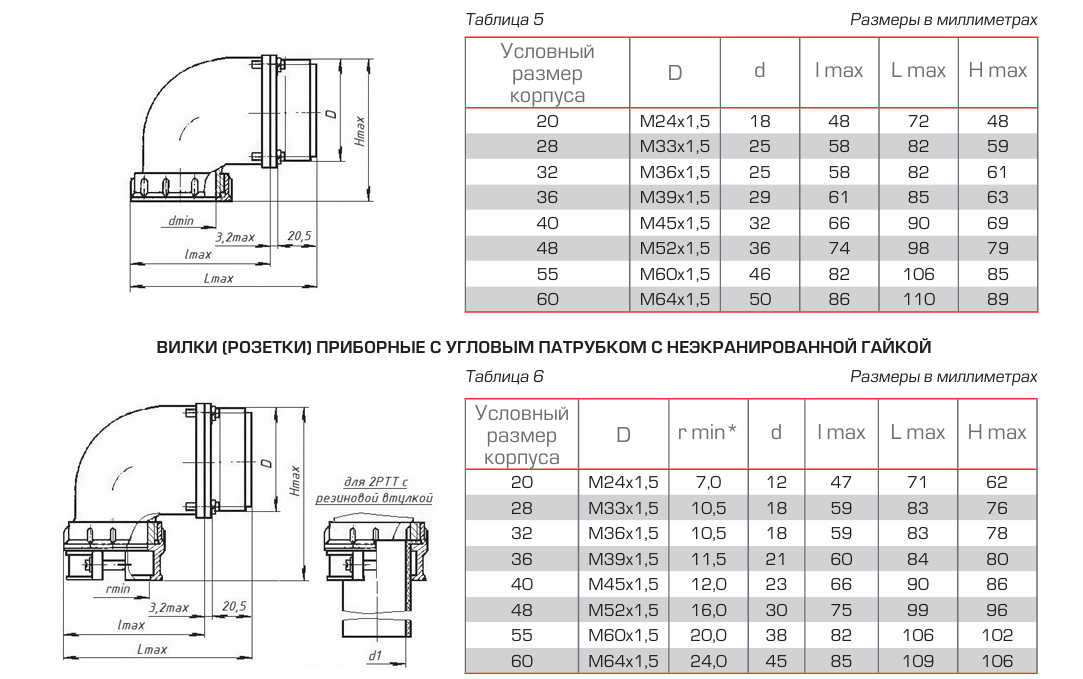

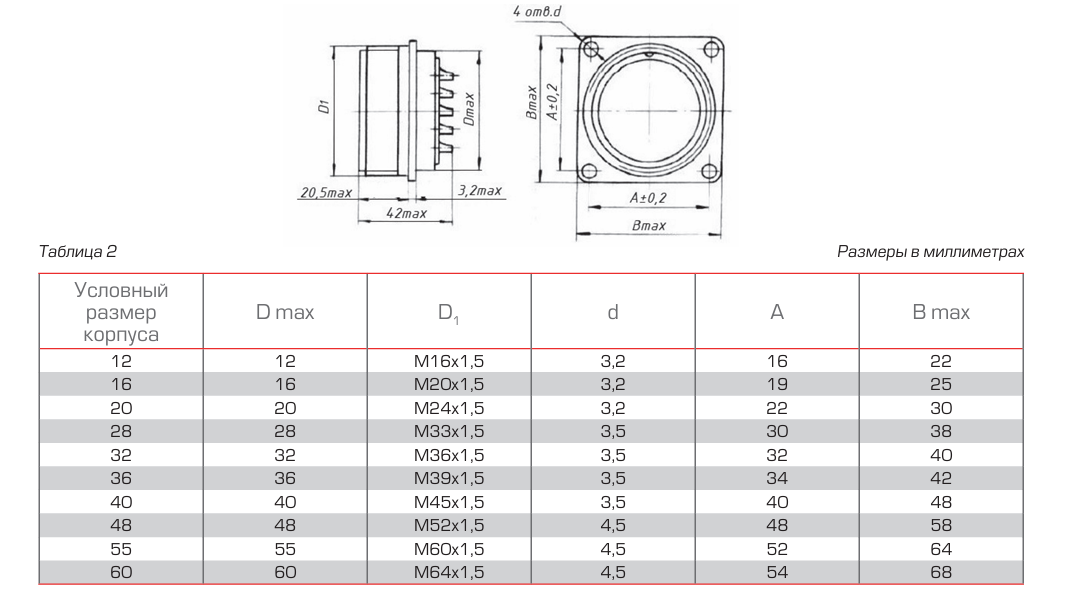

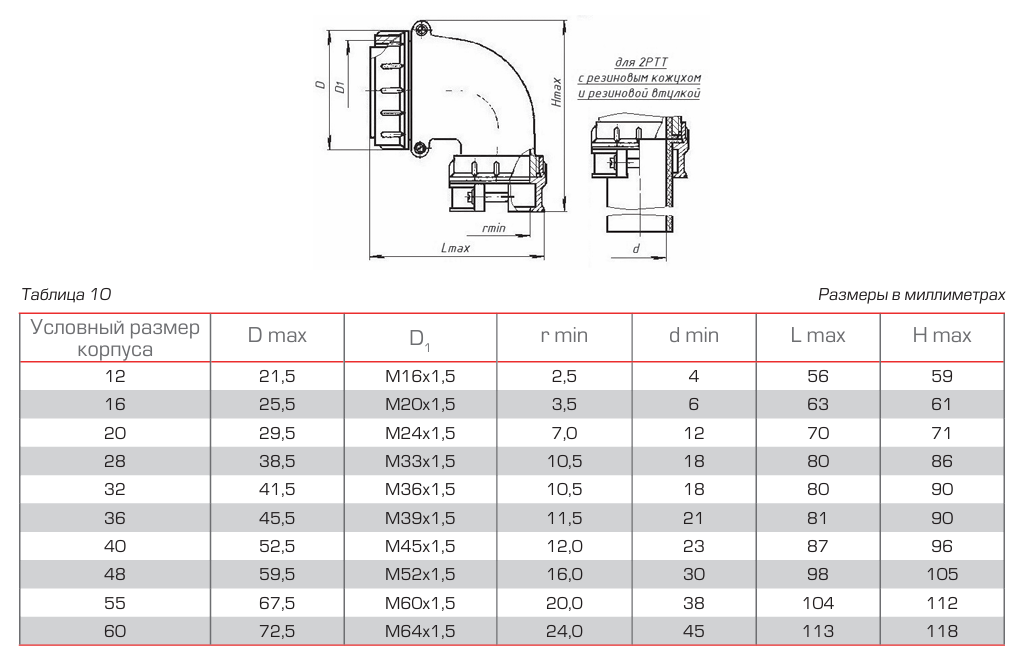

P55 详情图1P55 详情图2P55 详情图3P55 详情图4P55 详情图5P55 详情图6P55 详情图7

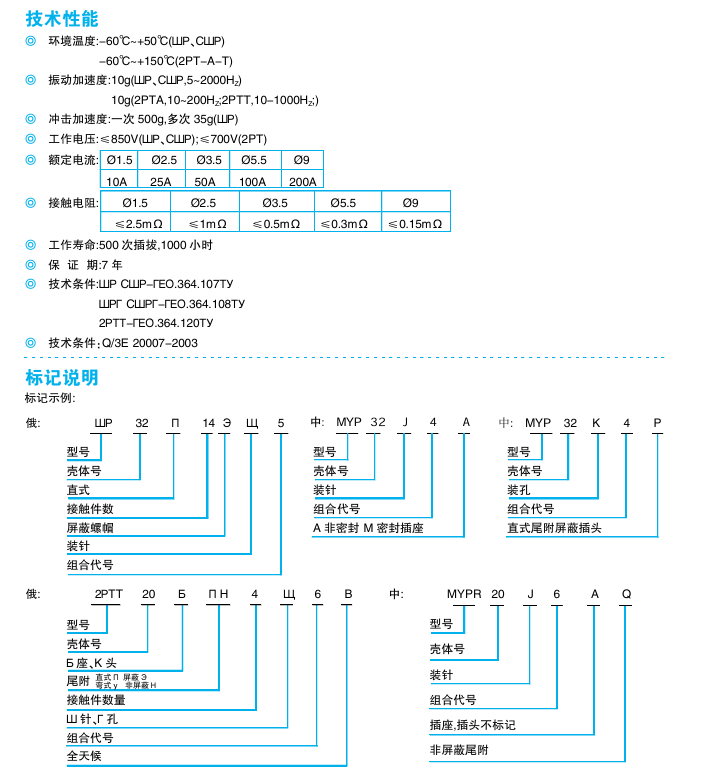

Parameters:

Materials and Technical Specifications; Mechanical and Electrical Performance:

shell size20couplingLatching
connector type插座couplingLatching
couplingLatchingstandardGOST R 50823
shell_materialAluminum alloystandardGOST R 50823
standardGOST R 50823protectionIP7
temperature range-60°C ~ +125°CprotectionIP7
protectionIP7
