CGTS014E19P
Category:26482 Series
Keywords:Housing No. 14, 19 pins, pin-type contacts, Polyamide Nylon UL94 V0, IP68/IP69K, rated 250V, -40℃~105℃, gold-plated contacts, plug-lock quick release
Details

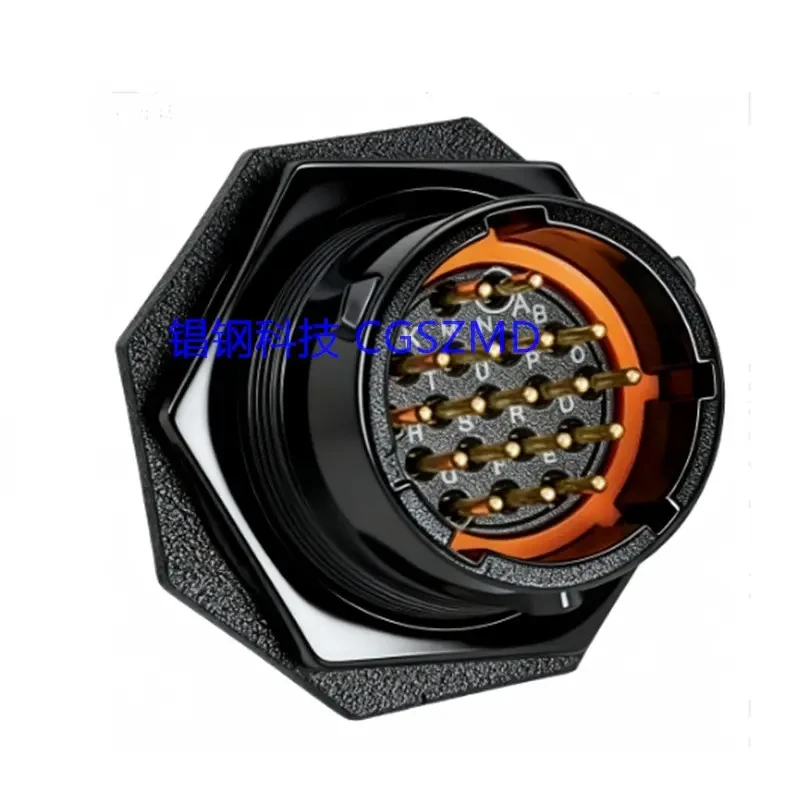

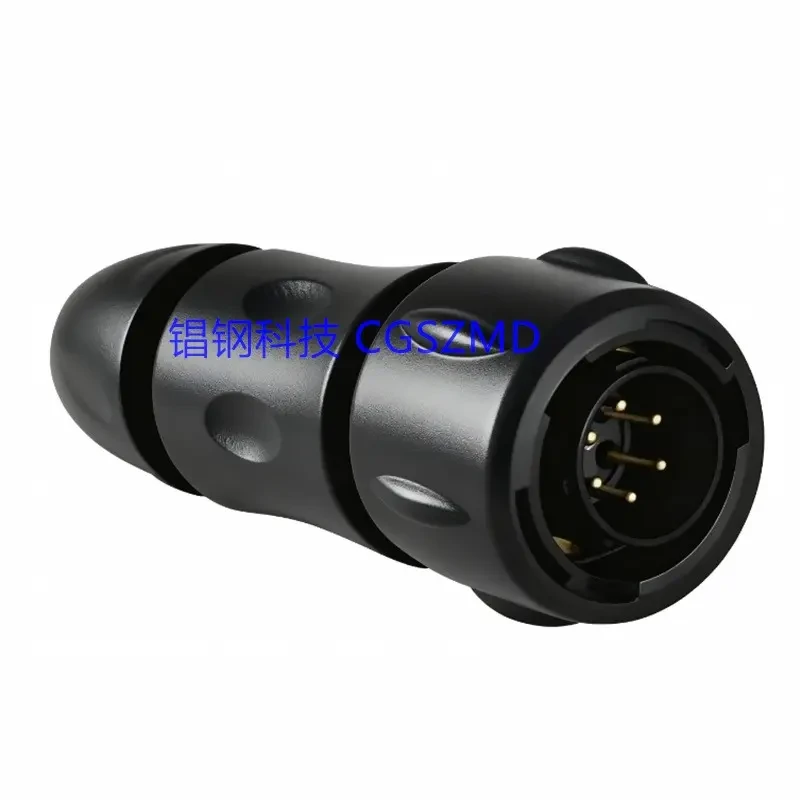

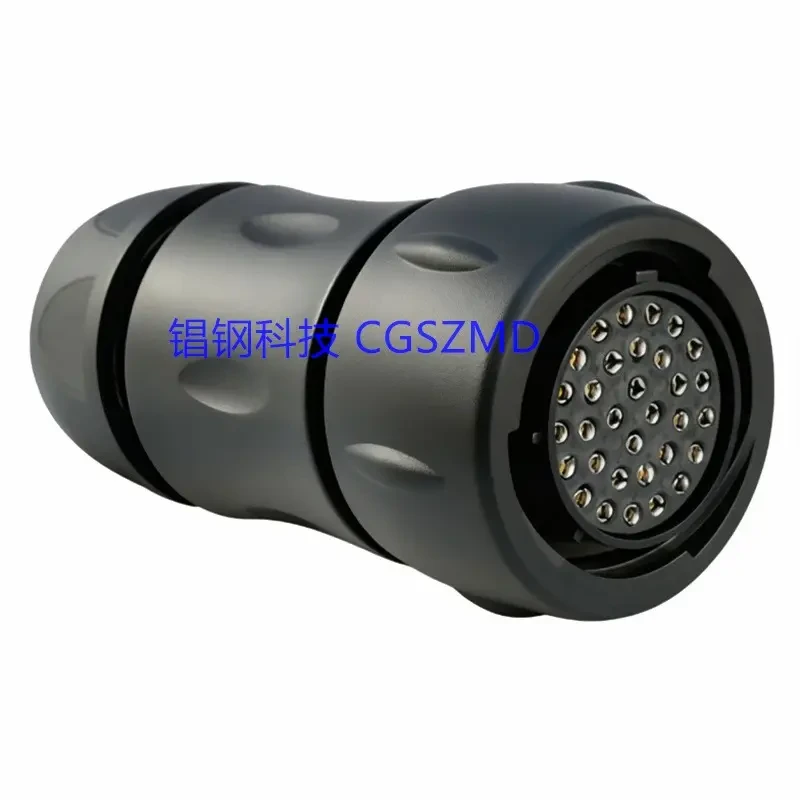

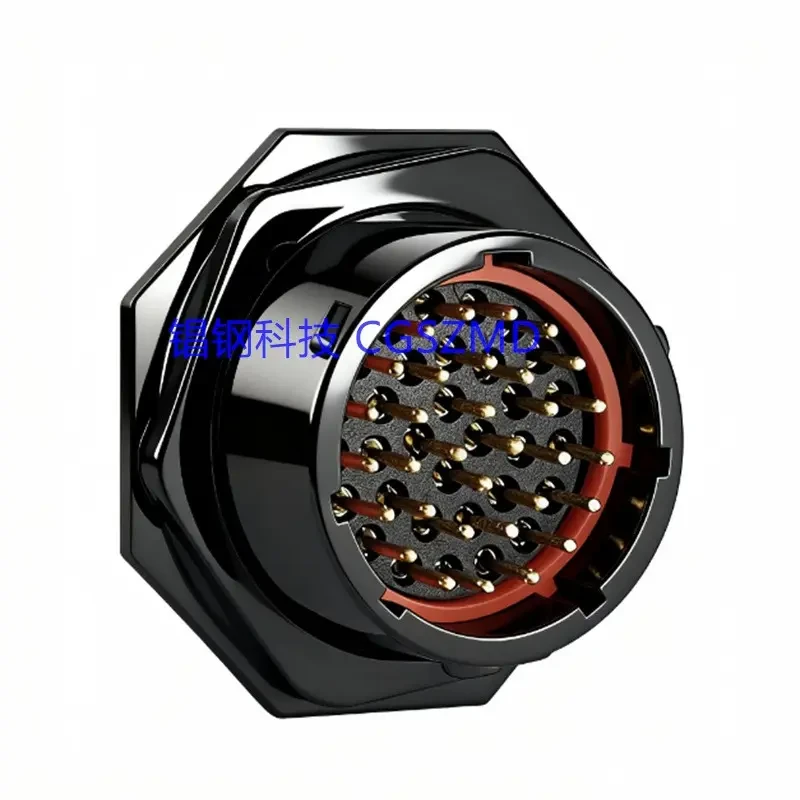

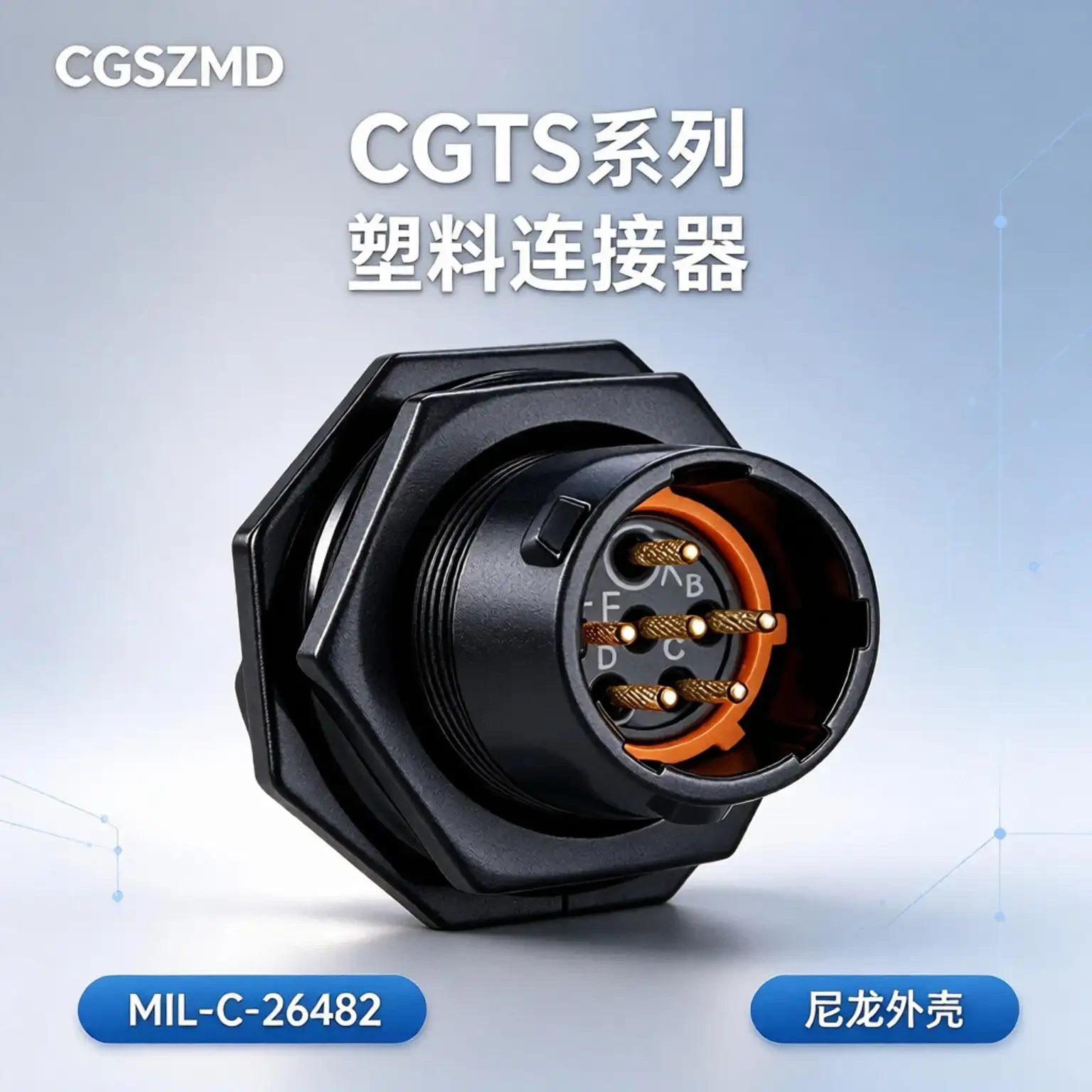

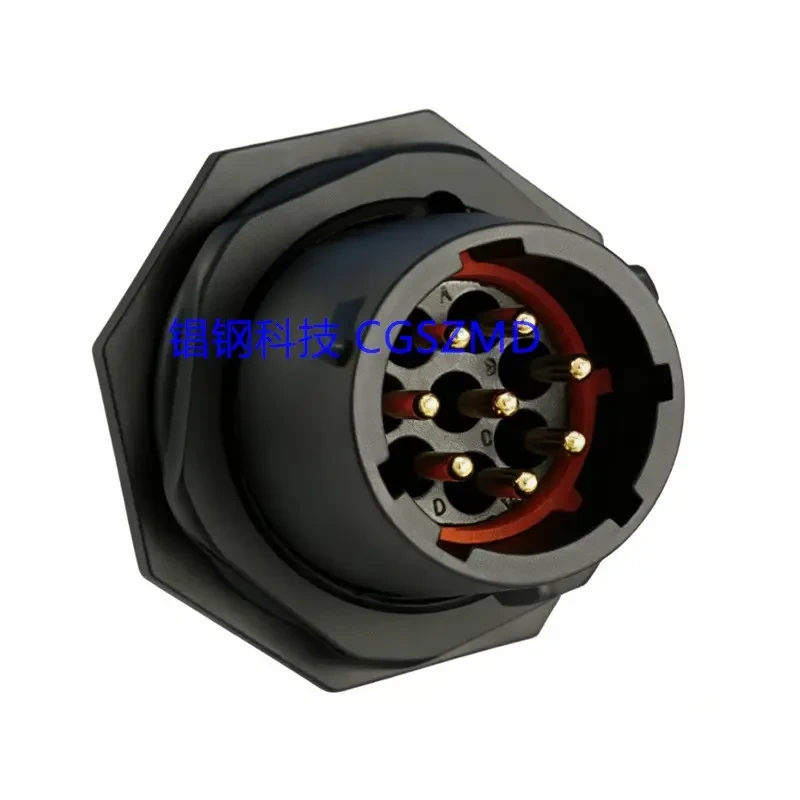

The CGTS series is a domestic alternative to the UTS Hi Seal waterproof plastic circular connector. It features a polyamide (nylon) housing with UL94 V0 flame resistance, UV protection, and high sealing performance up to IP68/IP69K in unconnected states. Operating temperature range: -40℃ to 105℃; rated voltage: 250V; gold-plated contacts ensure stable and reliable performance. Available configurations include square flange mounts, round nut panel mounts, short plugs, and cable glands with strain relief. With a wide variety of pin counts and an efficient bayonet locking mechanism, it is ideal for outdoor and harsh, wet environments such as energy, instrumentation, lighting, and communications. This series offers a direct replacement for imported models with convenient in-stock selection.
Model CGTS014E19P: Housing size 14, 19 pins, Pin-type contacts.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Line | CGTS (Benchmarked against UTS Hi Seal) | Number of contacts | 19 |
| Housing Number | 14 | Number of contacts | 19 |
| Number of contacts | 19 | Housing Material | Polyamide Nylon |
| Contact configuration | Pin | Housing Material | Polyamide Nylon |
| Housing Material | Polyamide Nylon | UV Protection | Has |
| Flame Retardant Rating | UL94 V0 | UV Protection | Has |
| UV Protection | Has | Operating Temperature | -40℃~105℃ |
| Protection Rating | IP68/IP69K (Unpaired State) | Operating Temperature | -40℃~105℃ |
| Operating Temperature | -40℃~105℃ | Gold-plated contacts | Yes |
| Rated Voltage | 250V | Gold-plated contacts | Yes |
| Gold-plated contacts | Yes | Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
| Locking method | Quick-lock pin lock | Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
| Structural Form | Square Flange Mount / Round Nut Panel Mount / Short Plug / Cable Locking Tail |
